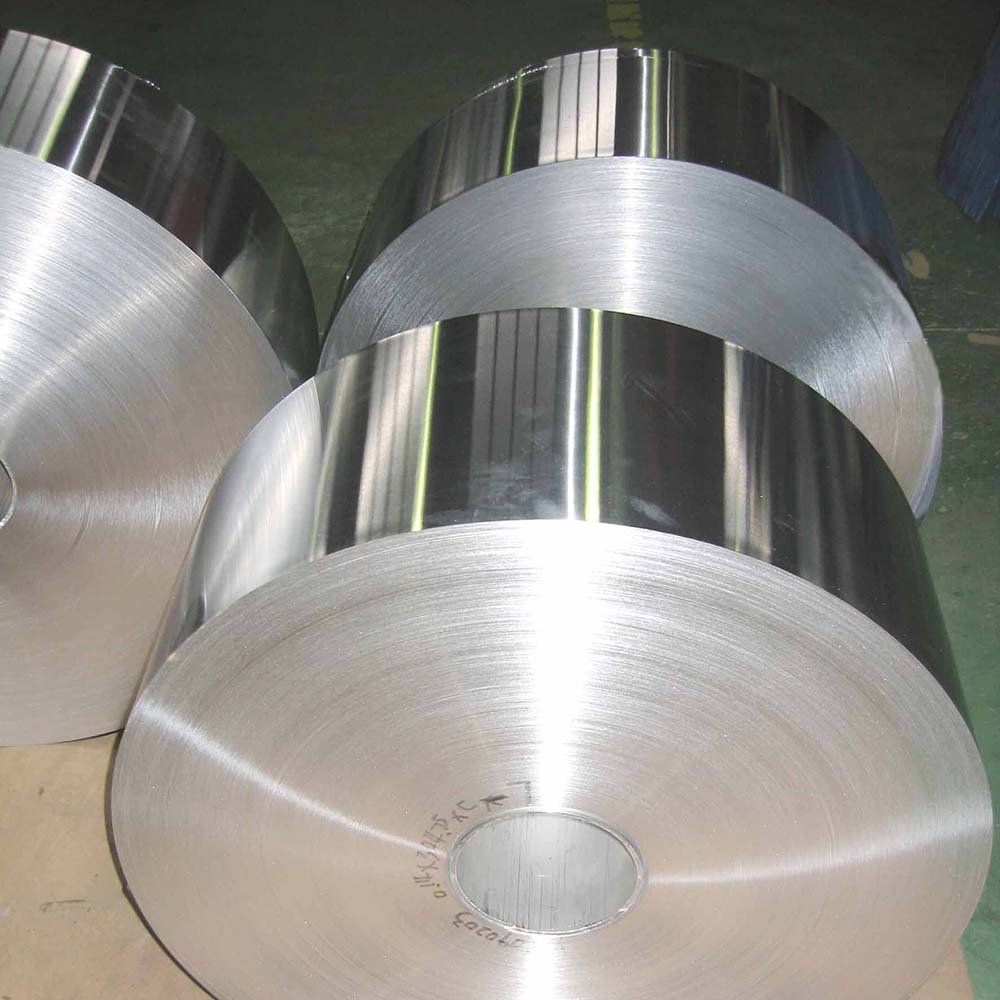

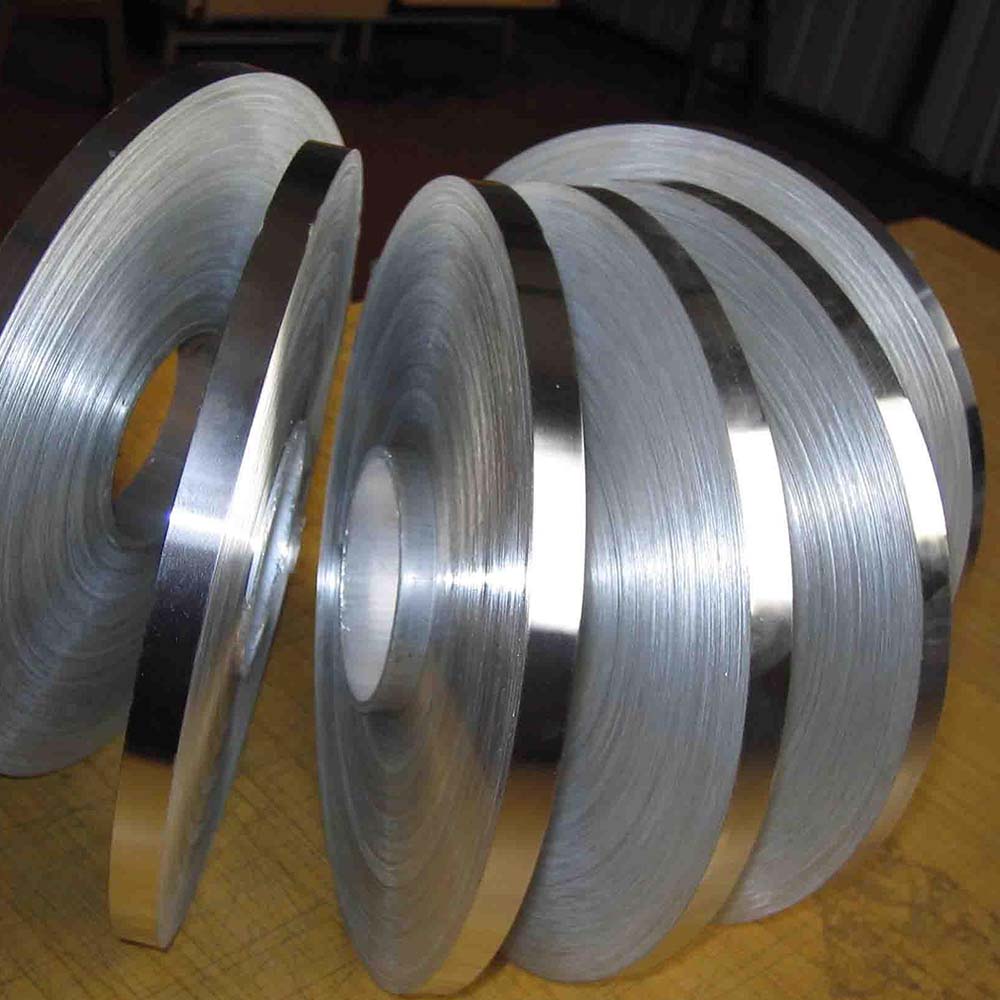

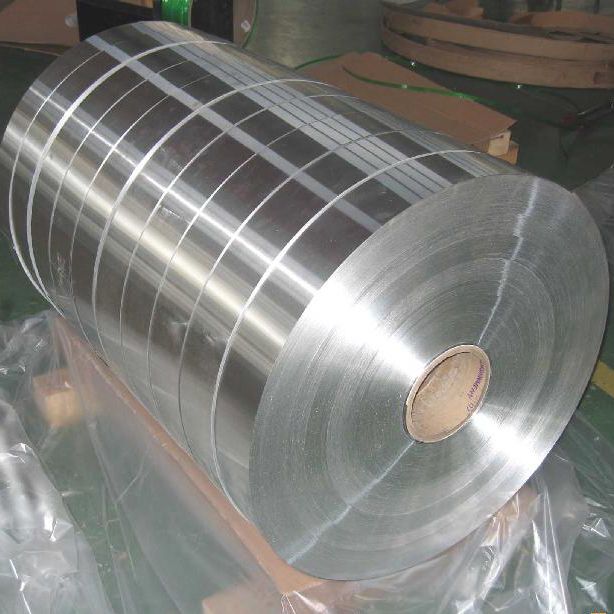

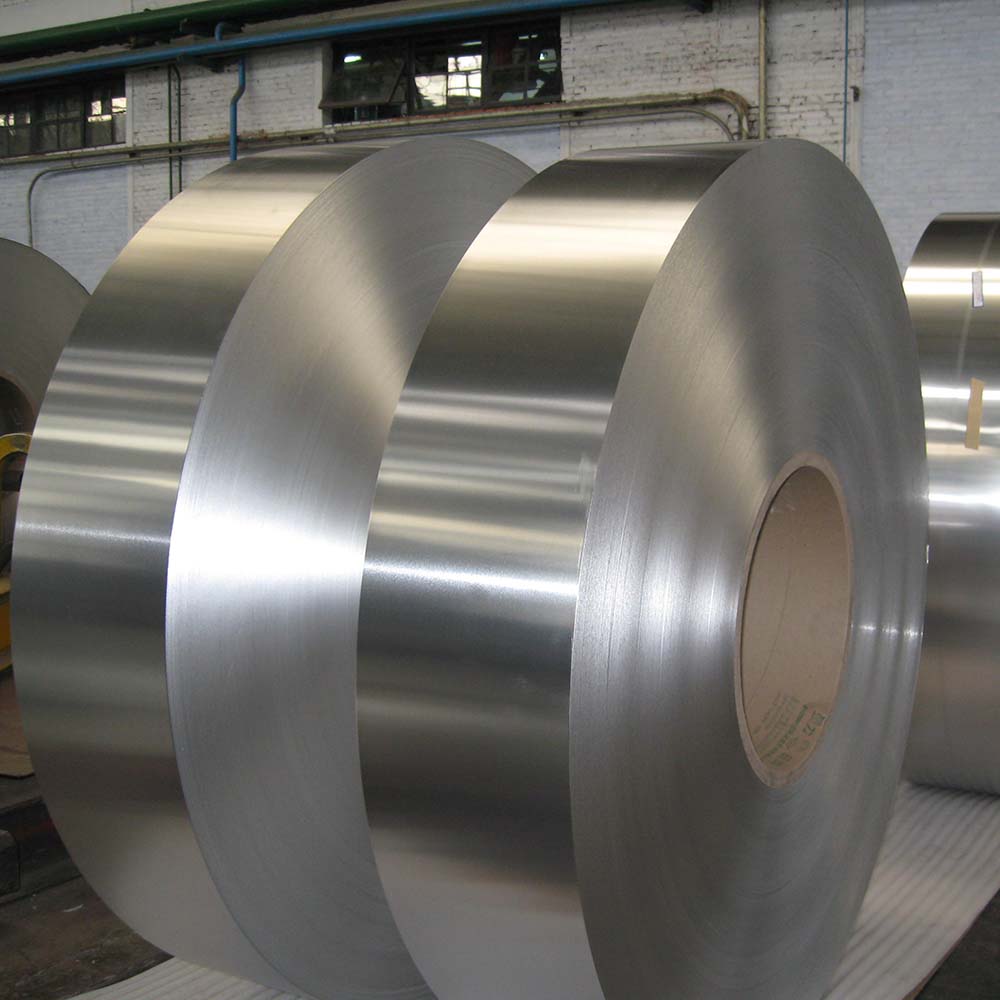

Aluminum strip fortransformer, aluminum foil for transformer
1. Alloy: 1050, 1060, 1350
2. Thickness: 0.2mm-3.0mm
3. Width: 20mm-1300mm
4. Packing: Eye to wall, eye to sky, wooden pallet
5. Delivery: 20~35days.
|
TOLERANCE |
|||||
|
Major Brand |
A1050(O) |
||||
|
Thickness |
0.2-0.4 |
0.4-0.8 |
0.9-1.1 |
1.2-1.6 |
1.8-2.0 |
|
tolerance |
±0.01 |
±0.015 |
±0.02 |
±0.025 |
±0.03 |
|
Width |
<100 |
100-200 |
201-500 |
501-1250 |
>1250 |
|
tolerance |
±0.1 |
±0.2 |
±0.2 |
±1 |
±2 |
|
BURR AND COLLAPSE |
|||||
|
The width of aluminum belt |
burr’s height |
collapsed side’s height |
|||
|
<0.2 |
0.01 |
≥0.05-0.1 |
|||
|
0.2-1.0 |
0.015 |
||||
|
1.1-1.5 |
0.02 |
||||
|
>1.6 |
0.03 |
||||
|
MECHANICAL PROPERTY |
|||||
|
U.T.S: 60-95N/mm2 |
Elongation: >25% |
||||
|
Density in 20°C :2.703kg/dm3 |
Max.resistance in 20°C:≤0.02825Ωmm2/m |
||||
