Magnesium alloy tooling plates

Magnesium alloy tooling plates

1. SIZE RANGE:

Sheet: thickness 1- 6mm; Width: 600mm max.; Length: 6000mm max.;

Plate: thickness 6 - 200mm; Width: 2800mm max.; Length: 6000mm max.;

Block: We can supply cut-to-size blocks according to customer's requirements.

2. Mg products Standards: Ams-4377, ASTM b 93/b 93m, ASTM b94 etc.

If you have any special requirement in specification, dimension of mg products etc, please be free to contact us at any time. Our technology engineer and us will communicate the details with you and satisfy you perfectly.

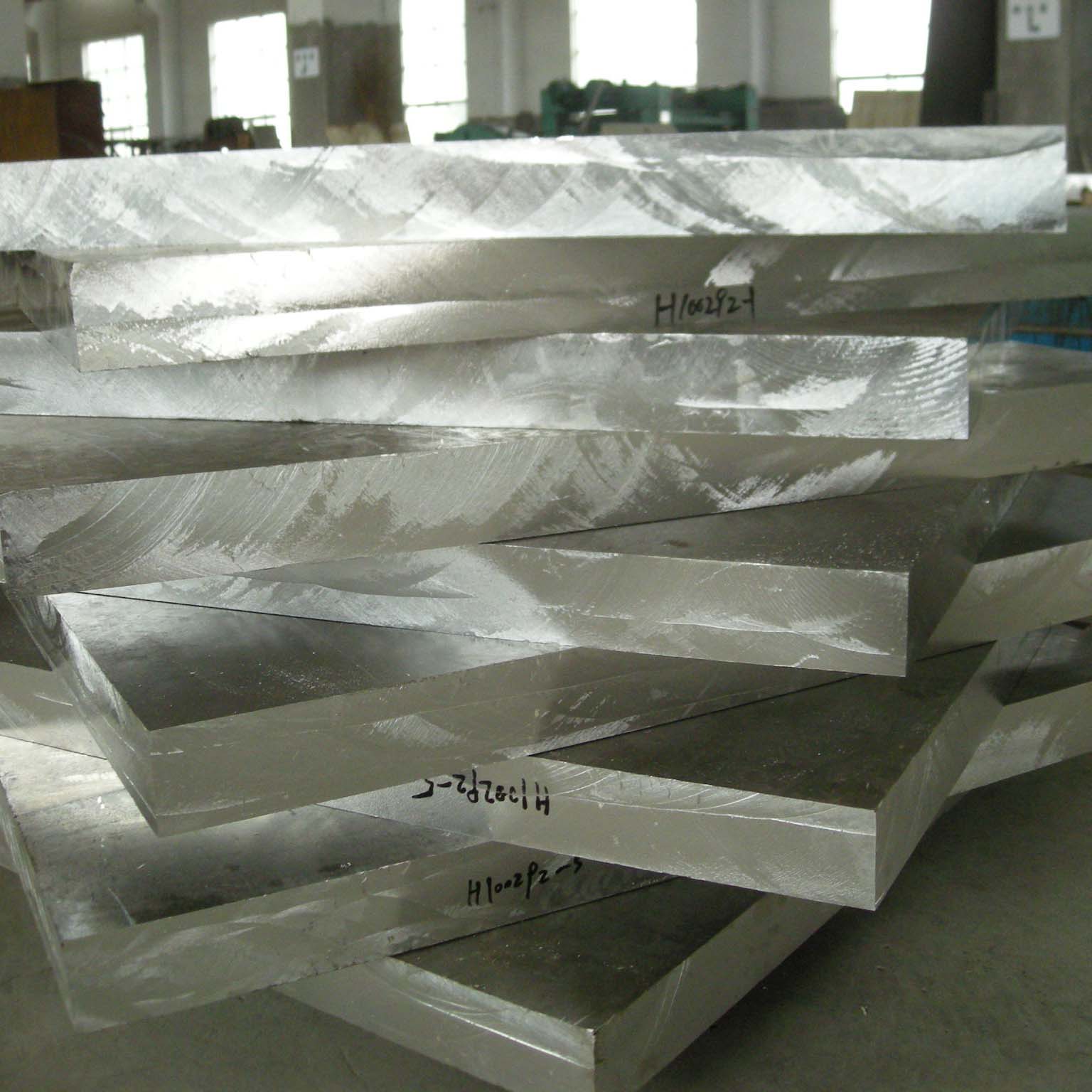

3.Magnesium tooling plate

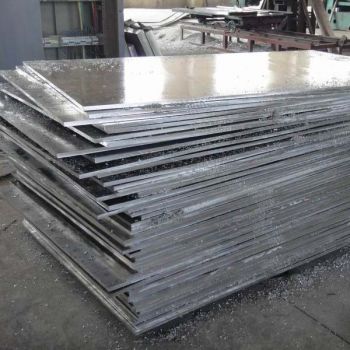

Hot rolled and surface machined, UT Tested
Vibration Testing Equipment

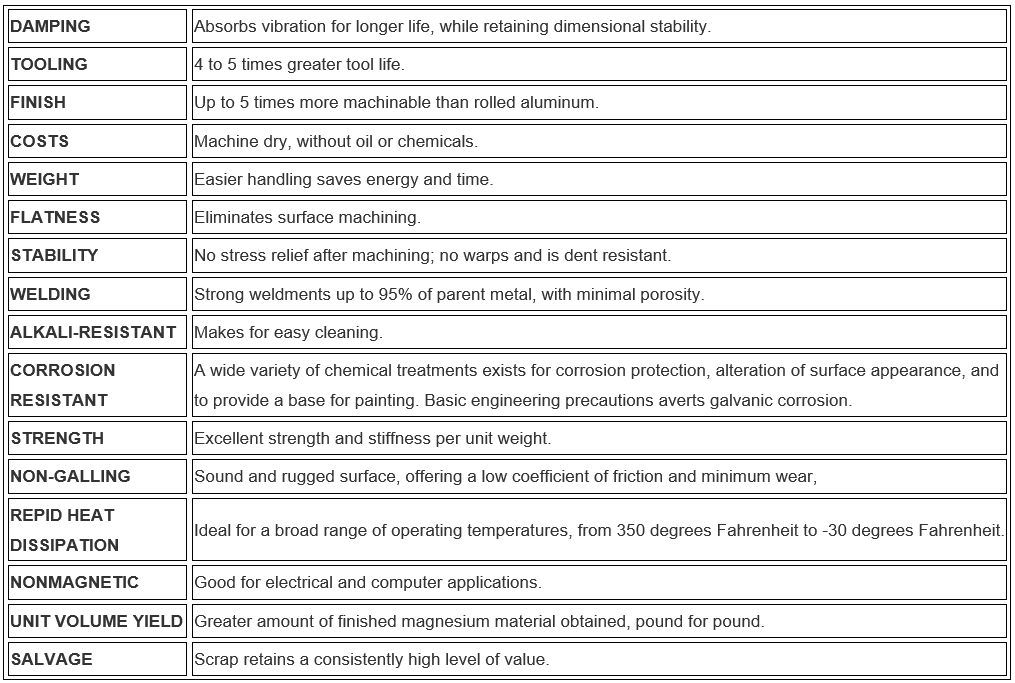

MAGNESIUM TOOLING PLATE is specially produced to provide a flat plate surface with moderate strength and ductility. The production process results in plate with exceptional dimensional stability in machining and remains stable over time. There is sufficient ductility for limited room temperature forming combined with weldability to allow the manufacture of a multitude of complex parts. Wrought magnesium tooling plate (Alloy AZ31B) has the following benefits and characteristics:

4.APPLICATION:

Those applications requiring a flat surface or high dimensional stability benefit from the use of magnesium tooling plate. Typical uses included jigs, fixtures, optical benches, vibration test equipment and inspection gauges. Magnesium Tooling Plate is non-magnetic and has high electrical and thermal conductivity filling many material requirements in the electronics and computer industries.

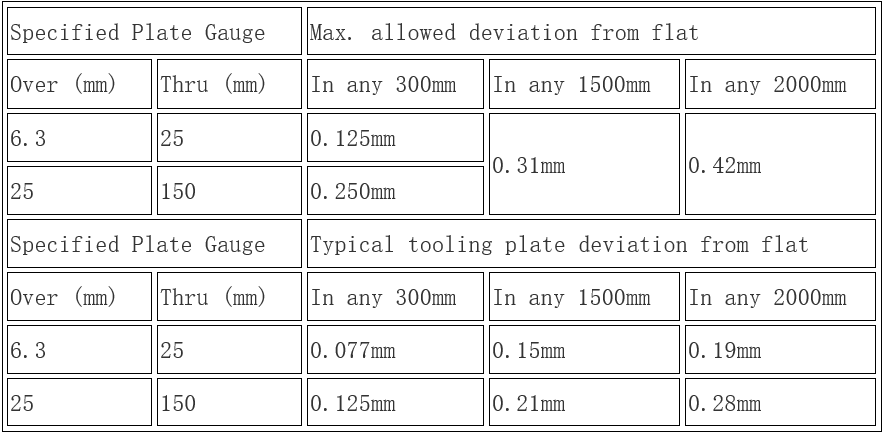

Magnesium Tooling Plate Flatness Tolerances

Max. deviation from flat as measured by a straight edge placed on plate surface.
